Cellular O2 sensing and transcriptional control of hypoxia-inducible genes

Cells are permanently threatened by hypoxia, meaning the O2 supply limits the rate of O2 consumption. Hypoxia causes cellular dysfunction and, eventually, cell death. The activation of genes encoding adaptive proteins is of crucial importance. Some of these proteins act systemically, such as erythropoietin (EPO), which increases the O2 capacity of the blood, and others locally, such as vascular endothelial growth factor (VEGF), which stimulates angiogenesis. At the single cell level, the expression of glucose transporters and of glycolytic enzymes is enhanced on hypoxic stress. The genes for all of these proteins are under the control of the so-called hypoxia-inducible transcription factors (HIF).

HIF are heterodimeric transcriptional complexes (HIF-α/ß). The HIF-α subunits possess two central oxygen-dependent degradation domains (ODDD) and two transactivation domains (TAD). There are least three different HIF-α subunits, whereby HIF-1α and HIF-2α are the best characterized to date. Human HIF-1α is pO2-dependently hydroxylated at Pro-402 and Pro-564, and HIF-2α at Pro-405 and Pro-531, in the ODDD. These reactions are catalyzed by specific HIF-α prolyl hydroxylase domain containing, 2-oxoglutarate- and Fe2+-dependent, dioxygenases (PHD-1, -2 and -3). Prolyl-hydroxylated HIF-α is immediately captured by the von-Hippel tumor suppressor protein and degraded by the 26S proteasome. Furthermore, cytoplasmic human HIF-1α can be hydroxylated at Asn-803, and HIF-2α at Asn-847, in the C-terminal TAD in the presence of O2, which reduces their
ability to bind the transcriptional coactivator CBP/p300. 2-Oxoglutarate competitors and iron chelators inhibit the degradation of HIF-α (Fig. 1).

EPO: The fountain-head in studies of hypoxia-inducible proteins

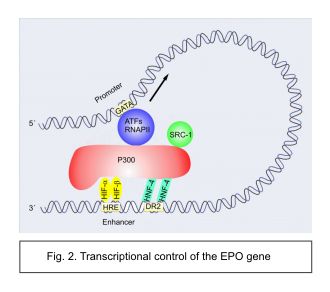

The glycoprotein hormone EPO is essential for red blood cell production (1). EPO mRNA is expressed in several organs, with the kidneys being the main production sites in adults. The EPO enhancer is activated by HIF-2 in collaboration with hepatocyte nuclear factor-4, HNF-4 (Fig. 2). EPO inhibits apoptosis and promotes proliferation of erythrocytic progenitors (primarily colony-forming units-erythroid, CFU-E)

through binding to the dimeric EPO-receptor (EPO-R). EPO signalling involves tyrosine phosphorylation of EPO-R and JAK-2, and the activation of anti-apoptotic proteins and of STAT factors. Lack of EPO results in normochromic normocytic anemia, as seen in patients with end-stage renal failure. Our studies have revealed that endogenous EPO levels are also low in patients with chronic inflammatory and malignant diseases, because inflammatory cytokines (IL-1, TNF-α) suppress EPO expression (2, 3). Recombinant human EPO is routinely used for treatment of renal anemia and chemotherapy-associated anemia. The development of second-generation erythropoietic proteins is a fascinating area in biotechnology (4). The applicability of EPO as a myocardial and neuronal protectant and its use for wound healing are under investigation. Whether tumor cells express functional EPO-R is a matter of controversial debate (5).  Regrettably, EPO is misused in sports as a means of blood doping (6).


Ligand-induced activation of HIF

We have identified peptidic mediators that can induce HIF-1α accumulation and HIF-1 DNA-binding in normoxic cells, including cytokines like interleukin 1 (IL-1) or tumor necrosis factor-α (TNF-α), and hormones like insulin. Our seminal finding that IL-1 and TNF-α stimulate HIF-1 dependent gene expression in normoxia and hypoxia has opened a new field in immunological research, with HIF-1 acting as a central player in inflammatory processes (7).

Many HIF-dependent genes encode proteins that promote inflammation (e.g. VEGF, HOX-1, eNOS, iNOS, COX-2).  Both the hypoxic and the ligand-induced activation of HIF-1 involve the phosphatidylinositol-3-kinase (PI-3-K) and the mitogen activated protein kinase(MAPK) pathways (Fig. 3). Activation of PI-3-K/Akt results in increased HIF-1α protein levels. The MAPK pathway increases the trans-activation ability of HIF-1 (8). Taken together, there is a fine control of HIF activity, involving (i)feedback-control of HIF-α PHD-2 and -3, (ii) ligand-induced HIF-1 activation and (iii) modulation by kinases and transcriptional co-factors.  Presently, the role of HIF-2α in inflammatory reactions is elucidated.

Therapeutic implications

Both pharmacological and genetic interventions that increase HIF activity and such lowering it are of therapeutic interest (9). On stabilization of HIF, the production of EPO increases which is of benefit in anemia. Stimulation of HIF-dependent gene expression accelerates angiogenesis for application in ischemic diseases. Furthermore, HIF activation augments cell proliferation, wound healing, and distinct inflammatory reactions. HIF suppression, on the other hand, is potentially beneficial to prevent tumor angiogenesis and tumor cell adaptation to hypoxia (Fig. 4).


  1. Jelkmann W:
    Erythropoietin after a century of research: younger than ever.
    Eur J Haematol 78: 183-205, 2007

  1. Batmunkh Ch, Krajewski J, Jelkmann W, Hellwig-Buergel T:
    Erythropoietin production: Molecular mechanisms of the antagonistic actions of cyclic adenosine monophosphate and interleukin-1.
    FEBS Lett 580: 3153-3160, 2006

  1. Krajewski J, Batmunkh C, Jelkmann W, Hellwig-Bürgel, T:
    Interleukin-1b inhibits the hypoxic inducibility of the erythropoietin enhancer by suppressing hepatocyte nuclear factor-4a.
    Cell Mol Life Sci 64: 989
    -998, 2007

  1. Jelkmann W:
    Biosimilar recombinant human erythropoietins ("epoetins") and future erythropoiesis stimulating treatments.
    Expert Opin Biol Ther 12(5): 581-92, 2012

  1. Aapro M, Jelkmann W, Constantinescu SN, Leyland-Jones B:
    Effects of erythropoietin receptors and erythropoiesis-stimulating agents on disease progression in cancer.
    Brit J Cancer 106: 1249-1258, 2012

  1. Jelkmann W, Lundby C:
    Blood doping and its detection
    Blood 118 (9): 2395-2404, 2011

  1. Hellwig-Bürgel T, Stiehl DP, Wagner AE, Metzen E, Jelkmann W: Review:
    Hypoxia-inducible factor-1 (HIF-1): a novel transcription factor in immune reactions.
    J Interferon Cytokine Res 25: 297-310, 2005

  1. Hellwig-Bürgel T, Stiehl DP, Katschinski DM, Marxsen J, Kreft B, Jelkmann W:
    VEGF production by primary human renal proximal tubular cells: requirement of HIF-1, PI3-kinase and MAPKK-1 signaling.
    Cell Physiol Biochem 15: 99-108, 2005

  1. Bruegge K, Jelkmann W, Metzen E:
    Hydroxylation of hypoxia-inducible transcription factors and chemical compounds targeting the HIF-
    α hydroxylases.
    Curr Med Chem 14: 1853-1862, 2007
